We are providing additional components to facilitate and optimize the water supply for the plants ensuring efficient irrigation and promoting healthy growth.
Step 1

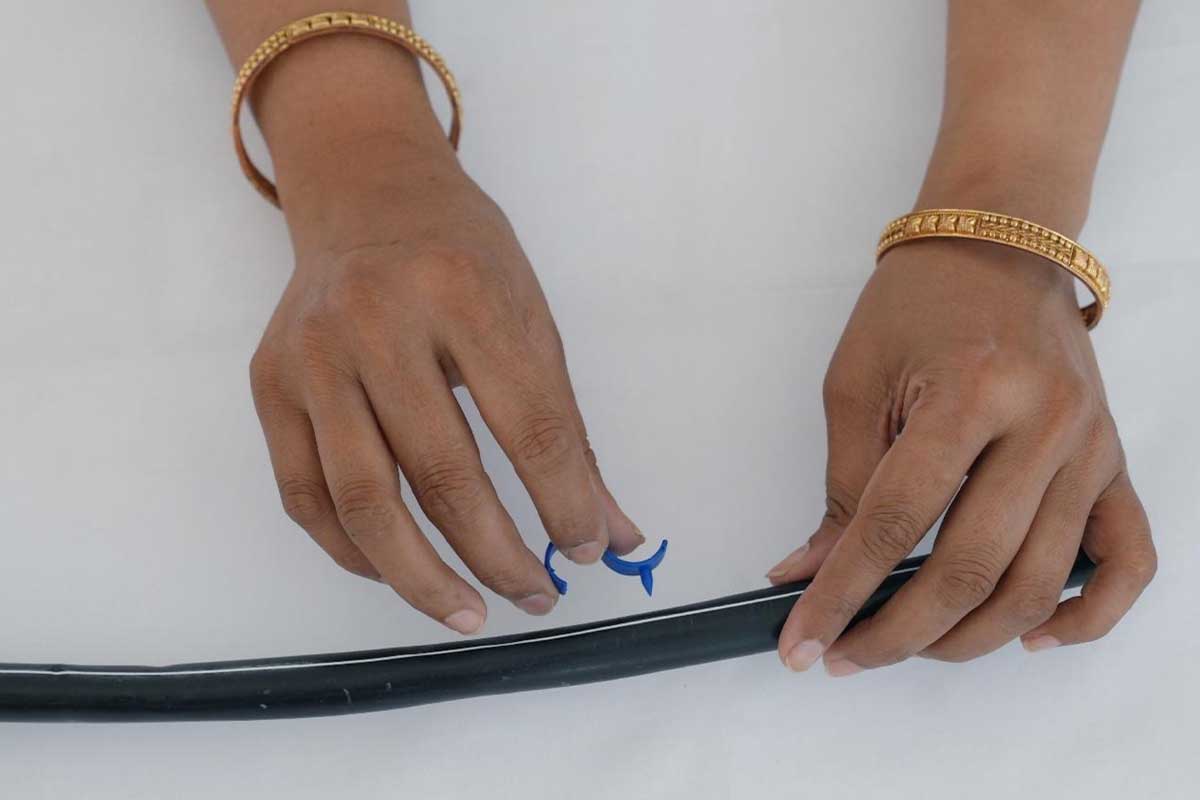

Take16mm main supply line,make a hole with punch tool.
Step 2

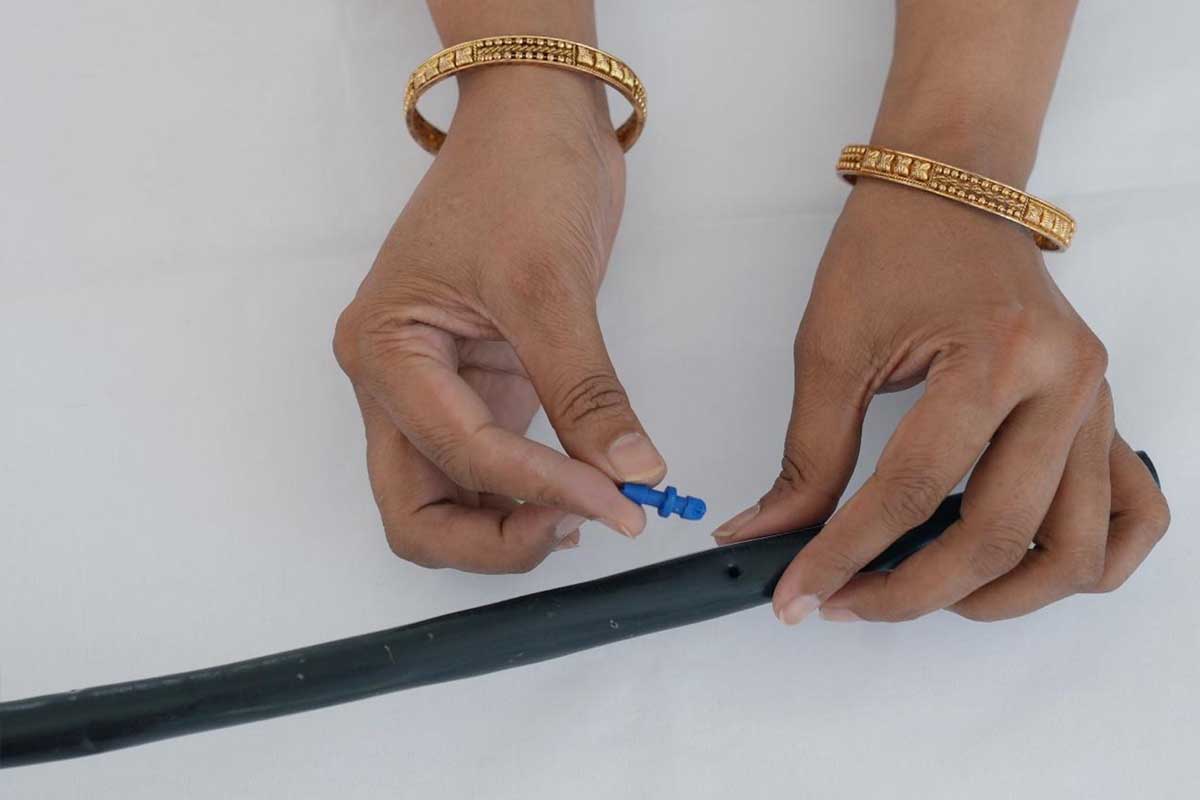

Attach pin Connector to the main supply line
Step 3

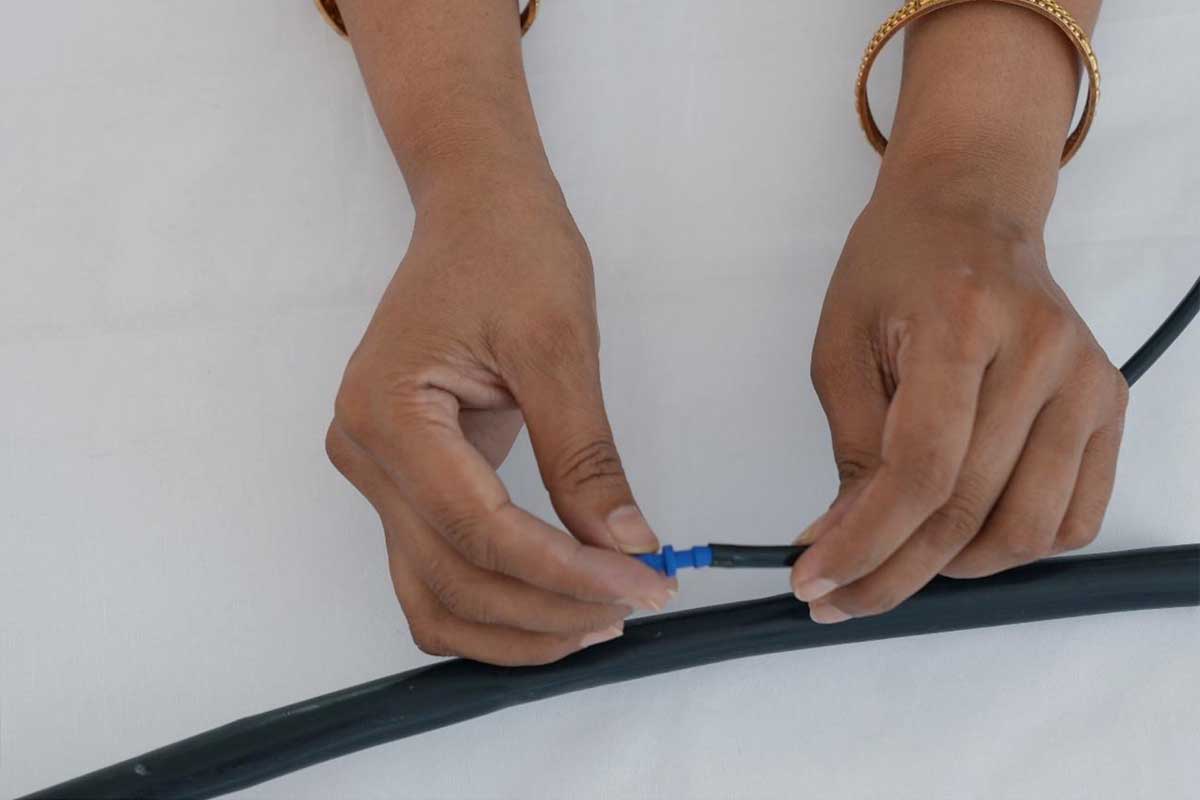

Cut the Micro tube As per your need and Join pin connector at the one end of the tube
Step 4

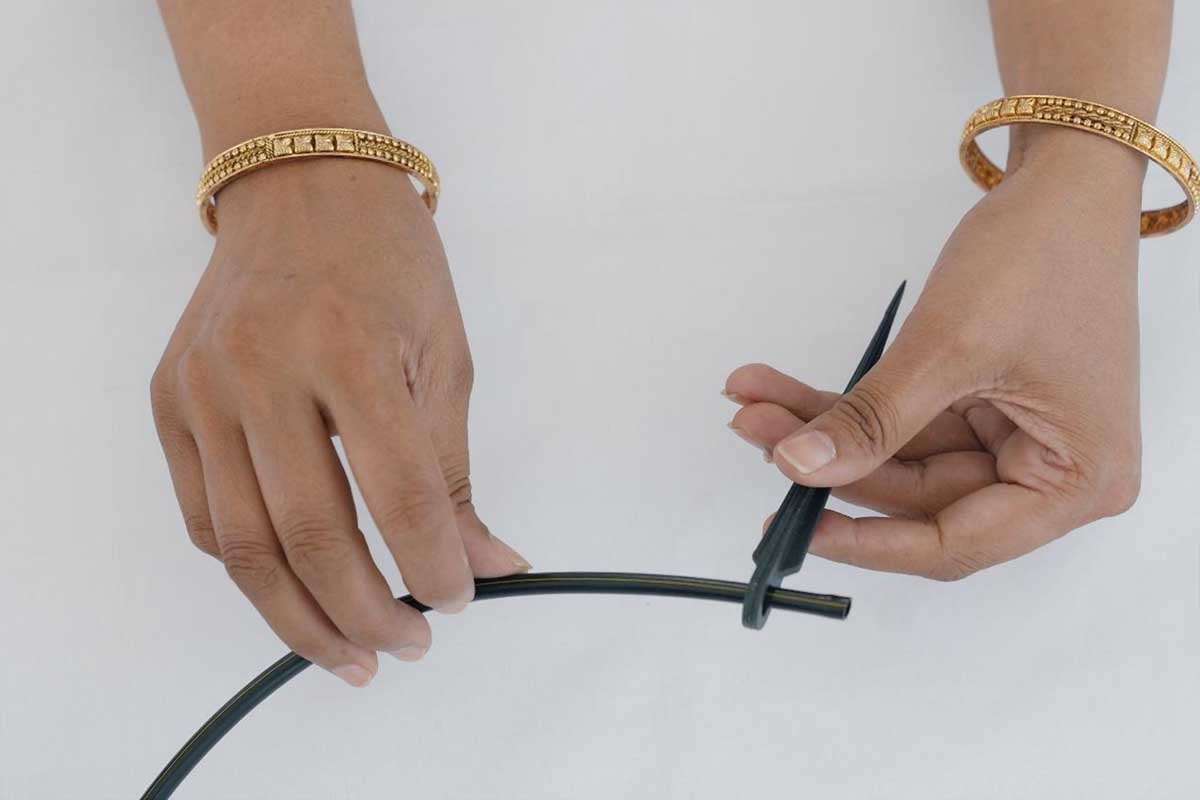

Insert stake in the micro Tube .
Step 5

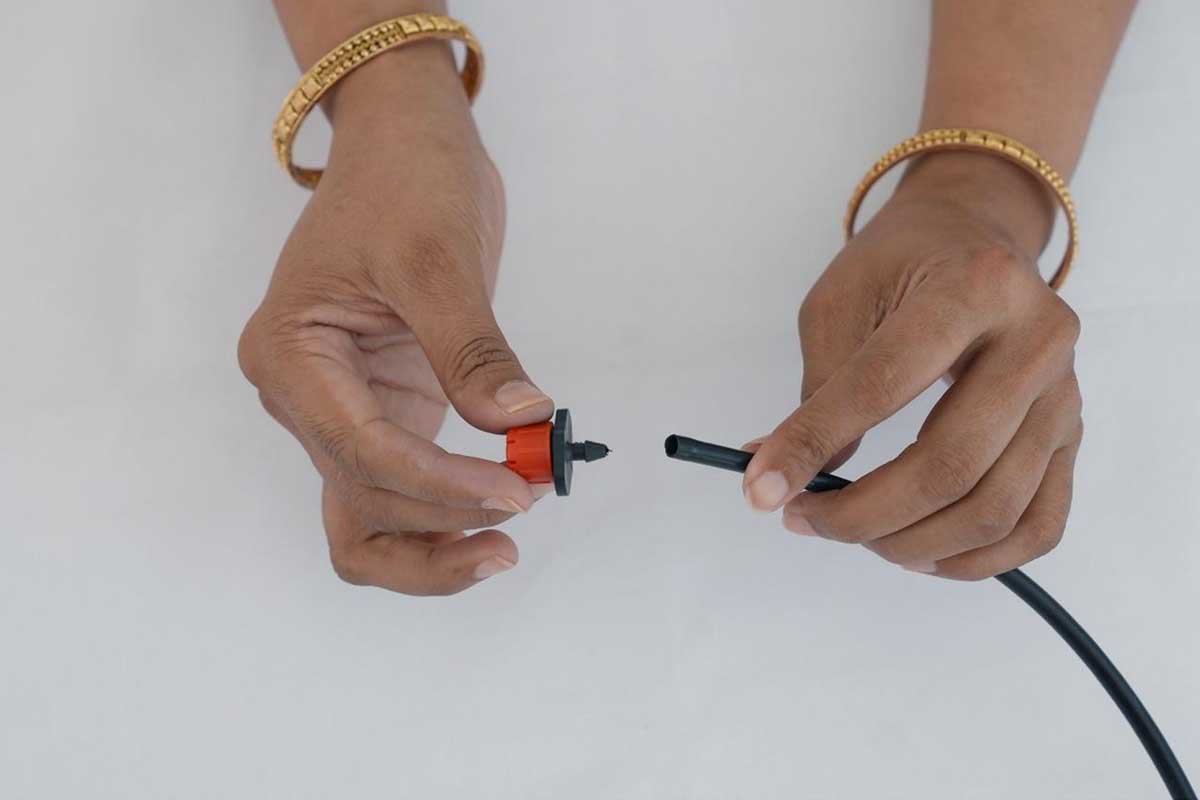

Attach dripper to the other end of Micro Tube
Step 6

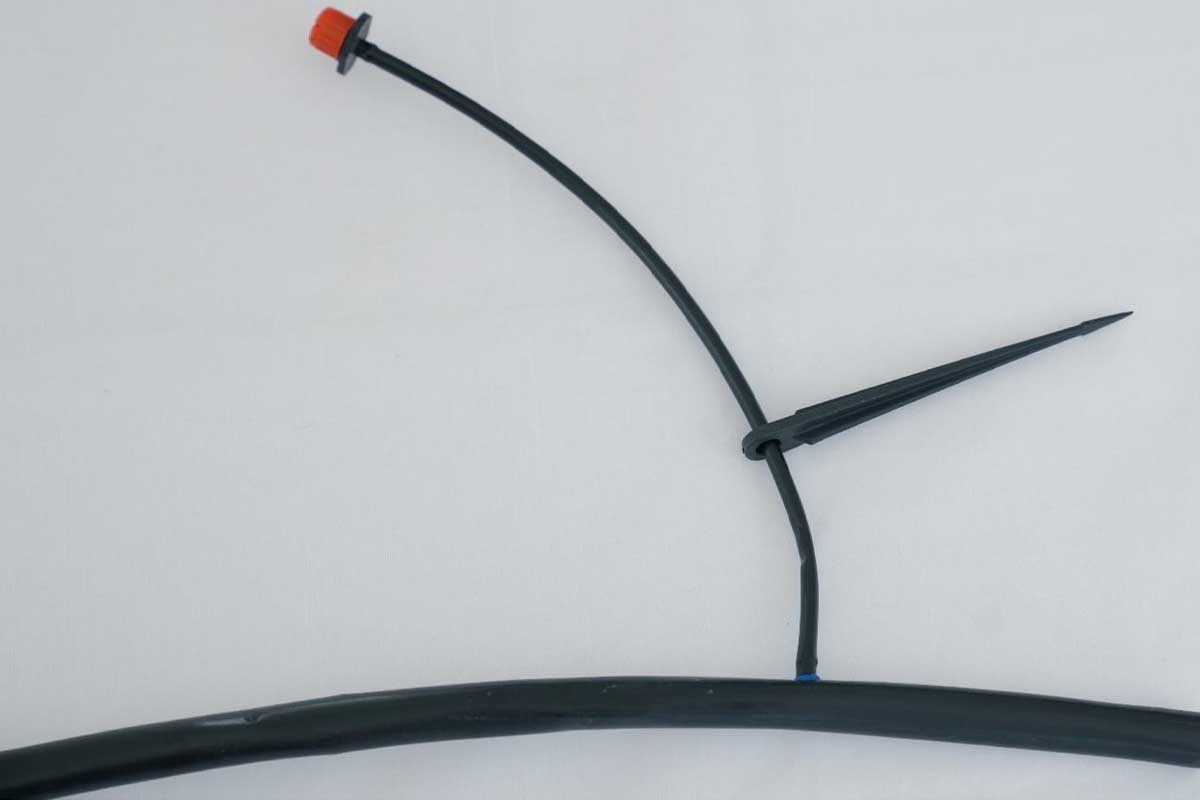

Follow this process as per your required distance.
Step 7

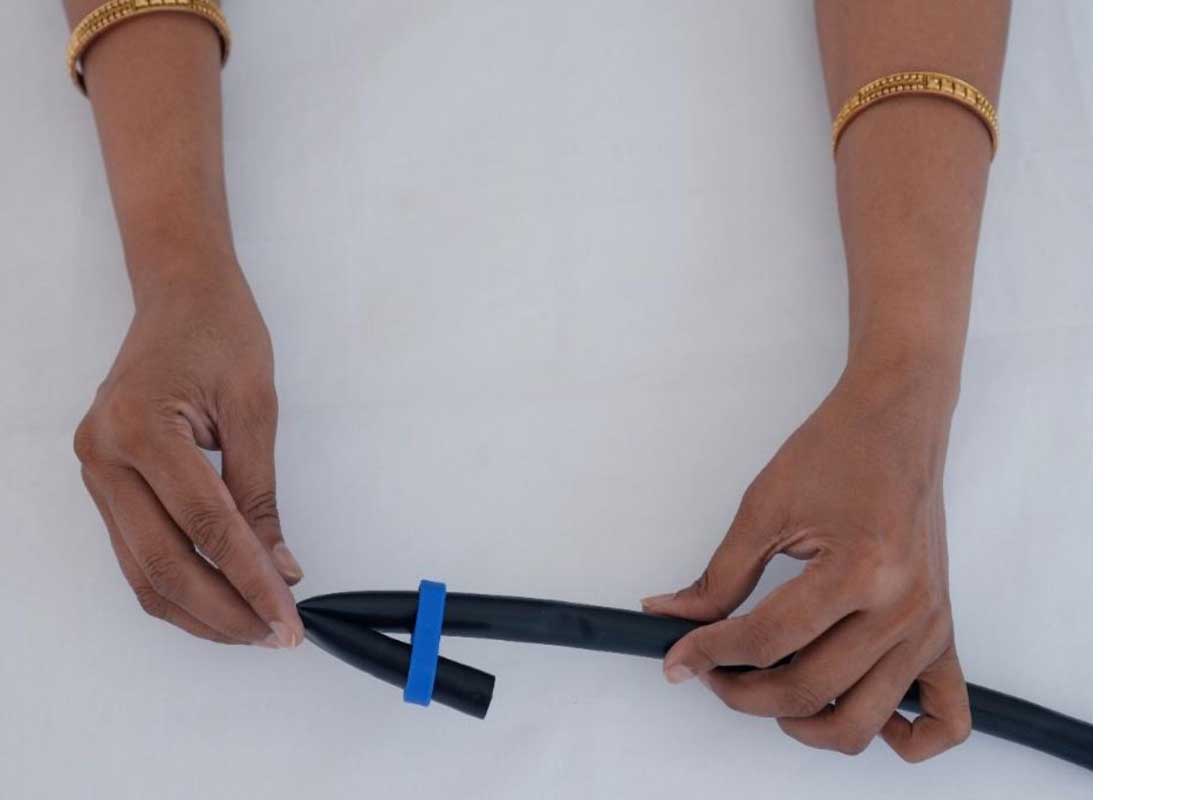

Using of end cap to block the main supply line.

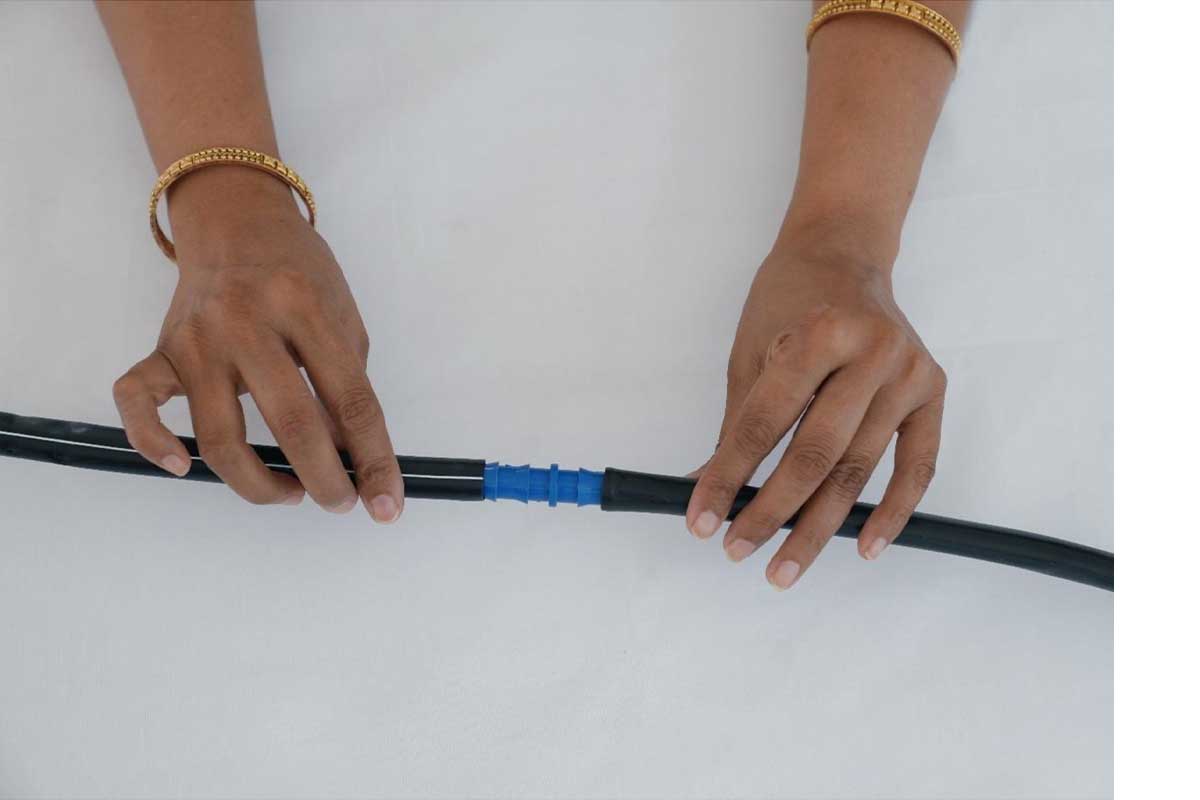

Straight Connector
Straight Connector/joiner to join two different end of main supply lines

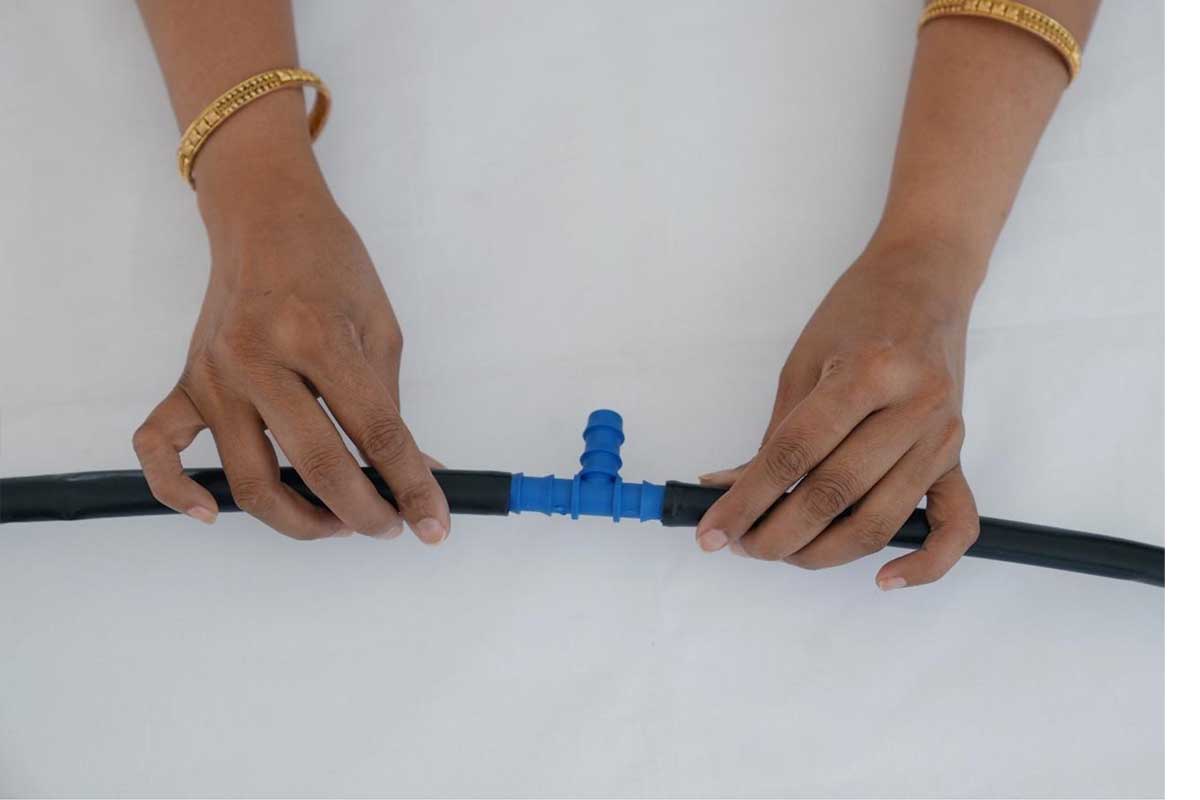

T-Connector
T-connector—Redirecting the supply of water in two different lines.

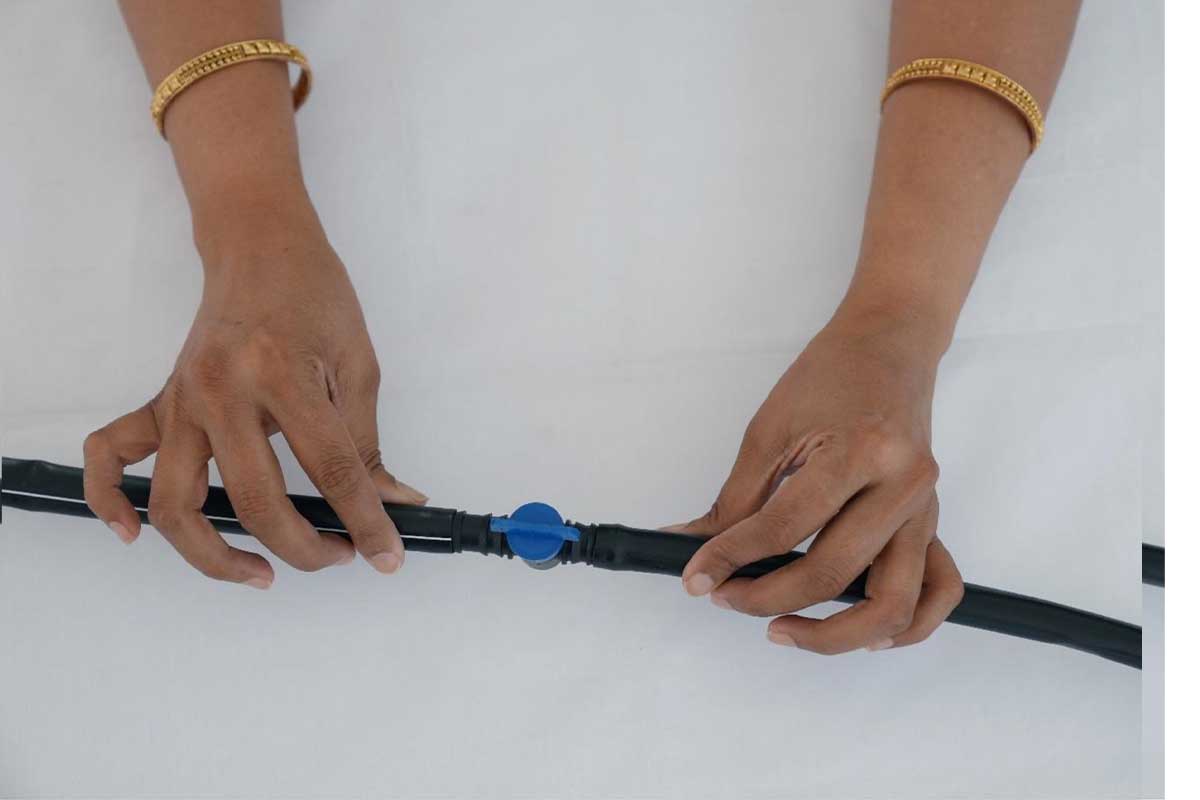

Connector With Tap
Straight Connector with tap—use for control the water flow.

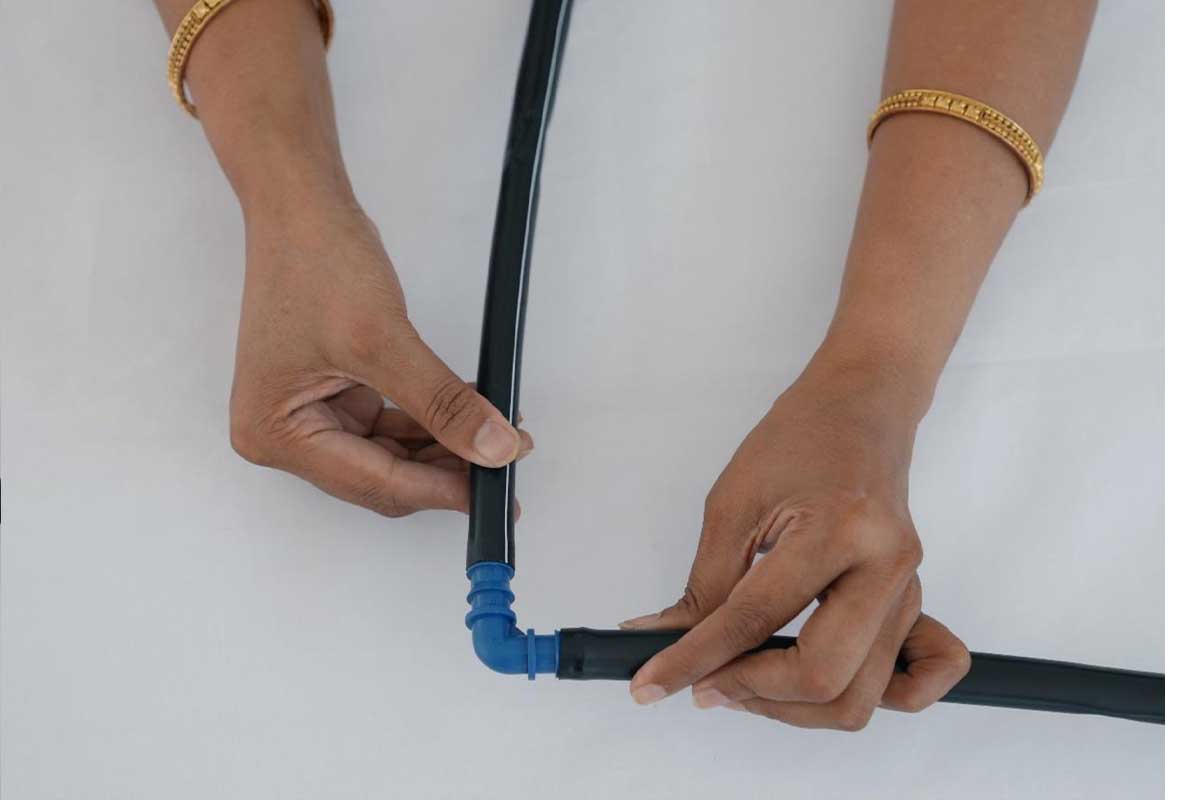

Elbow Connector
Elbow connector- To avoiding the bending of pipe at corners.

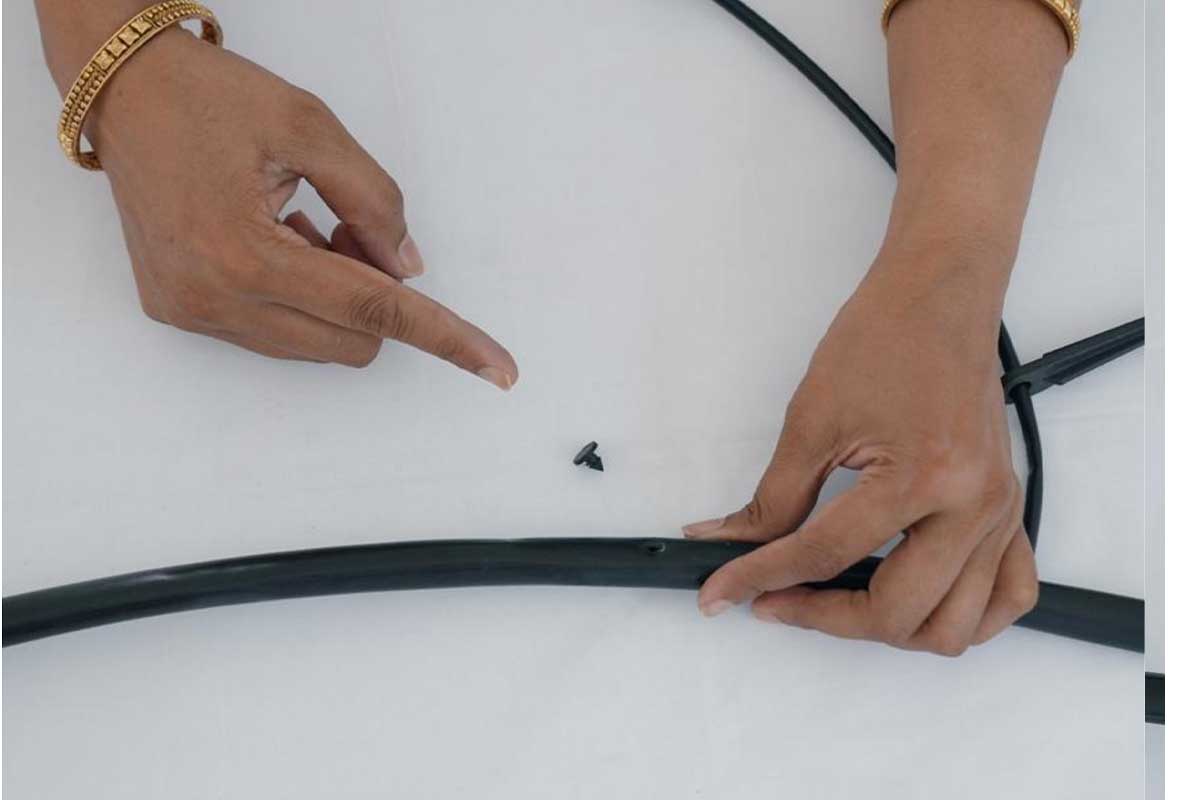

Dummy
Dummy—To block leakage of water and unwanted hole.
